BURN-OUT FURNACES

A series of furnaces with microprocessorED regulators. Modern, energy-saving equipment for a precise preheating of casting moulds.

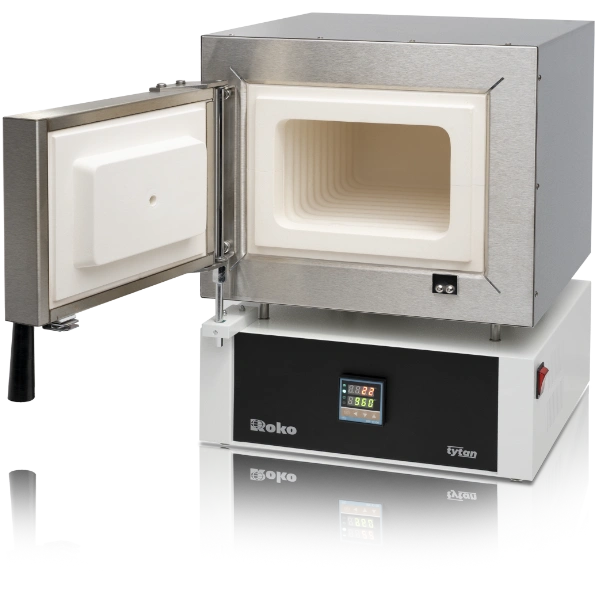

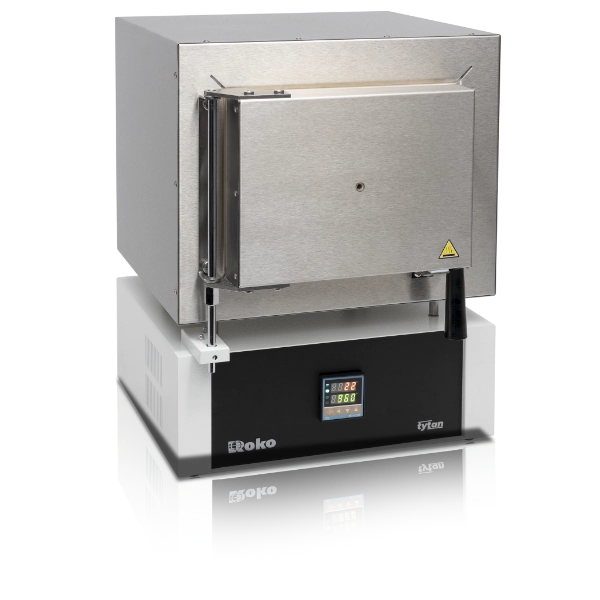

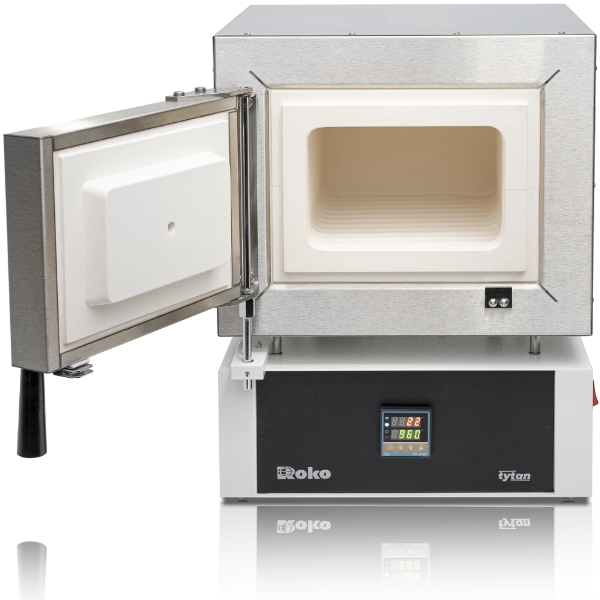

TYTAN ECO

TYTAN ECO is a compact furnace designed to manage all heating processes. An offer dedicated for laboratories looking for an inexpensive but efficient furnace.

see more...

FOR SPEED MASSES

The ECO regulator is perfect for heating rings of "speed" masses.

REGULATOR SMART

Easy-to-use ECO controller, ideal for processes that do not require a high number of cycles.

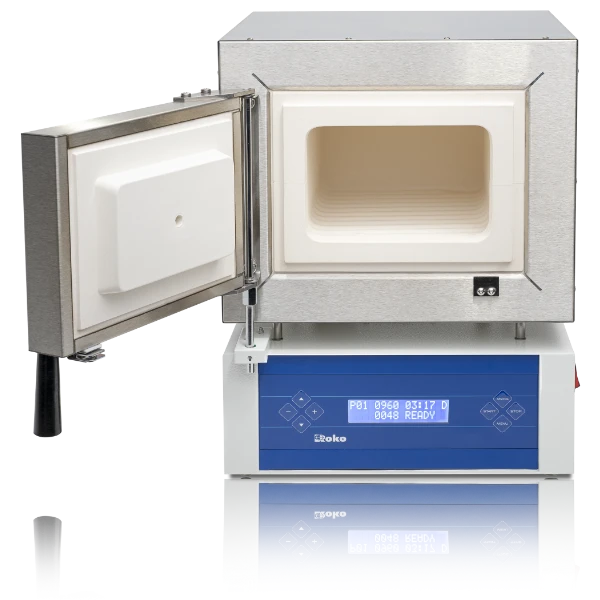

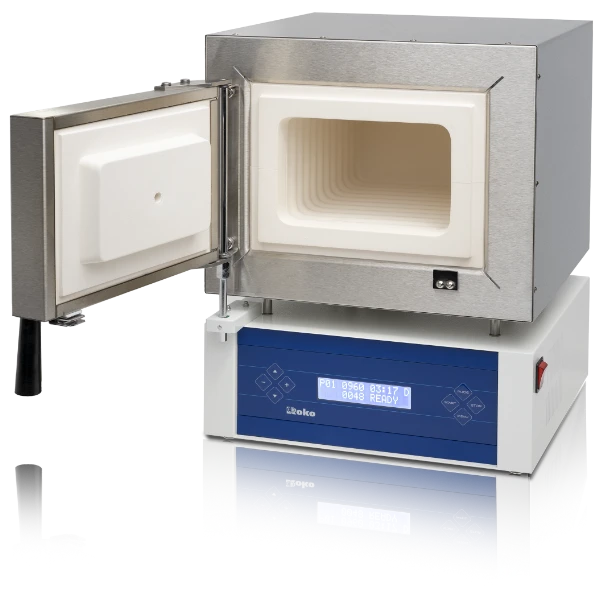

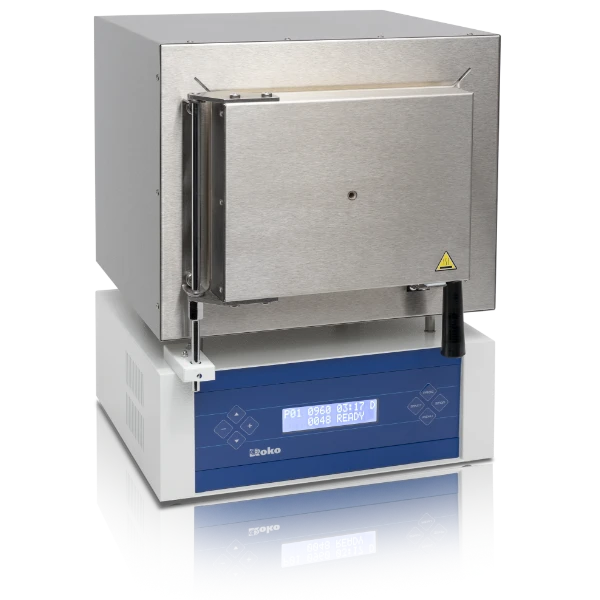

TYTAN PRO

TYTAN PRO has an advanced programmer with the ability to implement the most demanding processes of preheating rings with wax and 3D printing resin models.

see more...

PERFECT PRECISION

Microprocessor programmers enable the implementation of one to three cycles with an accuracy of 1 °C.

PROCESS CONTROL

30 programs and an easy-to-read display for perfect work results.

PROCESS RESET

In the event of a power outage, the furnace continues to burn when the voltage reappears.

ALWAYS ON TIME

The microprocessor programmer is equipped with a daily attachment with a delay of up to 99 hours.
TECHNOLOGY

ALL-CERAMIC CHAMBER

The chamber module is hard and uniform because it is formed by forming ceramics under a high pressure. It protects heating element against a mechanical damage and aggressive gases, what increases their durability.

The door and the chamber entrance are particularly vulnerable to damage resulting from handling the pliers and the ring. Strong ceramics effectively protect them from damages.

IN 60 MIN TO 1000° C

The heating elements of the furnace allow it to be heated up to 1000 °C in 60 minutes.

4D HEATING

The heating element on the 4 walls of the muffle guarantees perfect heating of the rings, regardless of their size or place in the chamber.

OPTIMAL CAPACITY

The chamber holds from 4 "9" size rings (moulds for skeletal dentures) up to 8 rings size "6" .

EXHAUST EXTRACTOR

A ceramic chimney allows a free dispose of fumes to the extractor.
SAFETY

100% STAINLESS STEEL

Due to the a high temperature and gases escaping during the heating process, the entire casing of the chamber of TYTAN furnaces is made of stainless steel, resistant to aggressive substances and a temperature.

A high quality housing components significantly increase the durability of the device.

PROTECTS HANDS

Side furnace door opening system protects the user from a high temperature

POWER FUSE

A safety switch disconnects the power supply when the chamber is opened and protects the furnace from overheating.

DOOR LOCK

A magnet keeps the door closed, regardless of how hot the case is.

CHAMBER PROTECTION

A ceramic tray protects the bottom of the chamber from the effects of melted substances.
OPERATION

THERMOCOUPLE QUARTZ COVER

The temperature sensor is placed in a quartz cover, which protects it from mechanical damage and aggressive substances from the burned rings.

A quartz cover does not have a thermal inertia (like ceramic covers) and is not susceptible to a corrosion (like metal covers), so the temperature measurement is as precise as possible.

READY TO GO

Before shipping to the recipient, each furnace is calibrated and "fired". As a result, it is 100% operational.

PROCESS VISUALIZATION

Acoustic and optical temperature signaling allows for comprehensive control of a burning process.

WHY TYTAN?

  • COMPLETE SOLID CERAMIC CHAMBER
  • STAINLESS STEEL CHAMBER HOUSING
  • THERMOCOUPLE QUARTZ COVER
  • CONTINUOUS OPERATION AFTER A POWER OUTAGE
  • HIGH PRECISION TEMPERATURE MEASUREMENT
  • UNIFORM TEMPERATURE IN THE CHAMBER

SERVICE ROKO

As a real manufacturer, we have the opportunity to offer our customers the highest standard of service, a standard that only the manufacturer can provide.

SERVICE 24H

ROKO's technical facilities enable us to repair our products within 24 hours of their acceptance for the service.

3 YEARS WARRANTY All active components of our devices, have an increased durability, so you can enjoy a 3-year warranty with unlimited operating hours, with the option of extending it to up to 5 years.

LOW SERVICE COSTS

As a manufacturer, we do not limit ourselves to replacing components, but we have the ability to repair them what makes the service costs be extremely low.

SPARE PARTS AVAILABLE

As a manufacturer, we have a complete range of spare parts so you no need to wait for them until they are delivered from the other side of the world. Technical consultants are at your disposal and their knowledge ensures that any problems are solved.
