PIN HOLE DRILLER FOR SAW CUT MODELS

PINAX is an integrated system for making precise dental models.

PINAX

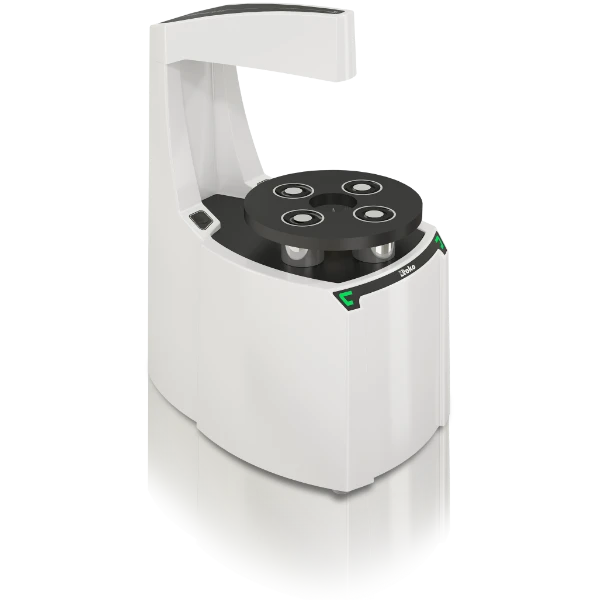

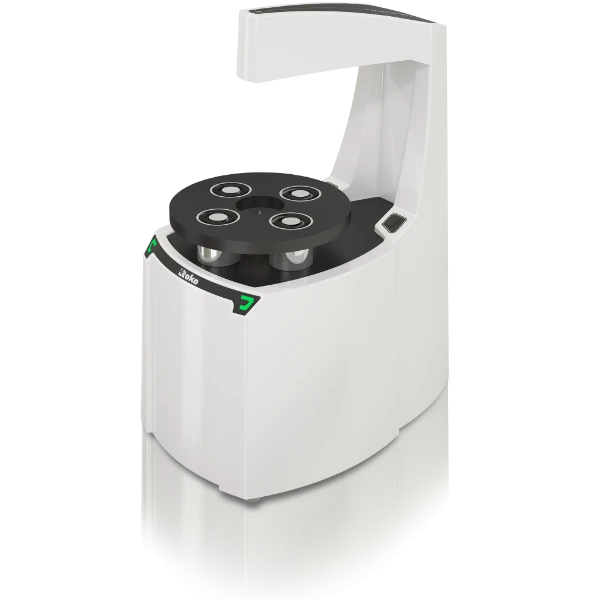

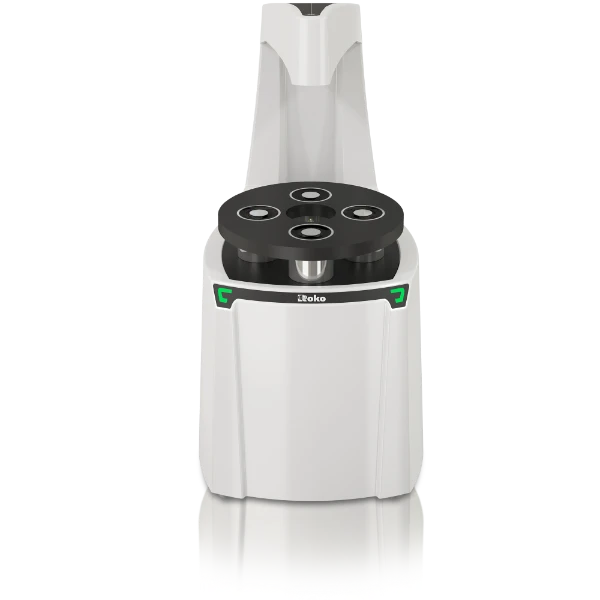

PINAX – a laser pin hole machine with electromagnetic locks provides an incomparable precision. Thanks to the prefabricated model bases, it minimizes the expansion of the plaster cast and ensures a perfect reflection of the patient's denture range.

more...

LASER

Laser beam with a minimum cluster diameter, precisely locates the drilling point

STATUS AND FUNCTION INDICATOR

Multi-coloured LEDs indicate the current operating status of the device.

THERE ARE 4 ELECTROMAGNETS

Strenghtened electromagnets firmly attach the model to the pinning table.

DRILLING SWITCHES

Two ergonomically positioned switches allow the base plate to be positioned freely.
TECHNOLOGY

2 X FASTER

2 x faster model making thanks to the plastic, prefabricated base. 7 minutes is the time of physical work necessary to make the model

2 X CHEAPER

2 x cheaper model because of a less plaster usage and expensive pins and the bases can be reused.

PRESTIGE AND DESIGN

Stylish models are the best showcase of your laboratory, thanks to them it builds a prestige and trust for your laboratory.

OPERATION

PINAX IS THE MOST ACCURATE SYSTEM FOR MAKING SPLIT MODELS.

  • Precision of model expressed in microns.
  • Dimensionally stable plates for model bases, without deformation.
  • Perfect fit between a base plate and a fixing plate.
  • Elimination of errors related to gypsum expansion.

IMPRESSION

The original position of the teeth in the patient's mouth.

DENTAL ARCH

Dental arch cast made of plaster, red contours.

EXPANSION OF GYPSUM

Comparison of the original position of the patient's teeth with the arch cast in plaster. Clearly visible inaccuracies spowodowane ekspansją gipsu.

DIMENSIONAL MEMORY

The model plate in the PINAX PRO system acts as a dimensional memory. The pin holes made in it are a record of the real position of the teeth in the patient's mouth.

RELEASE THE ARCH

The dental arch cast from plaster is rejected from the base plate after 30 minutes, just before the plaster expansion occurs. This allows the gypsum to work freely.

SEPARATION

The separation compensates for the deformities caused by the expansion of the plaster cast, which is now limited to individual segments and it does not deform the entire dental arch.

STEP BY STEP

Short instructions for making models in the PINAX system.

STEP 1

Place the impression tray on a carrier plate with PINAXIL.

STEP 2

Using the PINAXIL putty, form a seal around the impression tray.

STEP 3

Install a base in a fixing handle.

STEP 4

A precise laser beam will determine where to drill to place the pins.

STEP 5

Release a pre-drilled plate from the support plate and place all the pins in the holes.

STEP 6

Use a 4th plaster or a higher class over the impression. You will get the best results with a vibrator.

STEP 7

Put a pinned plate on the unbonded plaster, release the model after the plaster is done.

STEP 8

Use a cutter or stone to clean the plaster from any remains.

STEP 9

Now you can precisely separate all elements.

STEP 10

You can set up individual points in any way you want.

STEP 11

The finished model is aesthetic and clean, and what most important - precise.

STEP 12

You can install the model in the articulator using plaster or a professional plinth.

WHY PINAX?

  • LOW MODEL PRICE
  • PERFECT FIT OF DENTURES
  • 2X FASTER MODEL PRODUCTION
  • FOR PLASTER AND PLASTIC MODEL BASES
  • SMALL LASER BEAM DIAMETER
  • 3 YEAR UNLIMITED WARRANTY

SERVICE ROKO

As a real manufacturer, we have the opportunity to offer our customers the highest standard of service, a standard that only the manufacturer can provide.

SERVICE 24H

ROKO's technical facilities enable us to repair our products within 24 hours of their acceptance for the service.

3 YEARS WARRANTY All active components of our devices, have an increased durability, so you can enjoy a 3-year warranty with unlimited operating hours, with the option of extending it to up to 5 years.

LOW SERVICE COSTS

As a manufacturer, we do not limit ourselves to replacing components, but we have the ability to repair them what makes the service costs be extremely low.

SPARE PARTS AVAILABLE

As a manufacturer, we have a complete range of spare parts so you no need to wait for them until they are delivered from the other side of the world. Technical consultants are at your disposal and their knowledge ensures that any problems are solved.

ACCESSORIES

PINAX BASE PLATES

The high quality of the material and the advanced technology of the base plate production provide them with an ideal surface and no deformation. Available in two sizes: S, L

ANGLED BASE PLATES

The high quality of the material and the advanced technology of the base plate production provide them with an ideal surface and no deformation. Available in two sizes S,L

PINAX INTERMEDIATE PLATES

Perfect surface fit of the stabilizing points. A magnet in the intermediate plate securely attaches it to the base plate Available in two sizes: S, L

CALIBRATION PLATES

Transparent plates for precise positioning of the impression to the laser. Available in two sizes: S, L

PINAXIL

A plastic putty for stabilizing the impression on the fixing handle. Reusable

PINS

Precise brass pins for all model systems with prefabricated bases. Pack of 1000 pcs.
